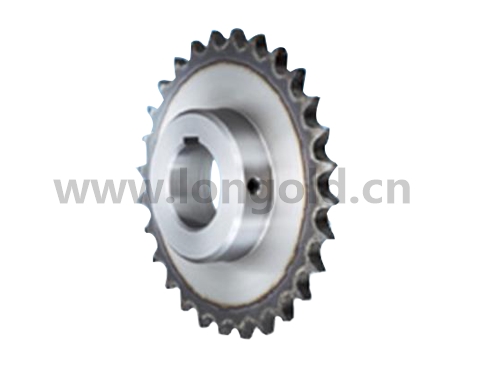

配孔軸孔完成品

所有品種為庫存品，均為齒端硬化規格。輪轂1B類型軸孔徑H7，鍵槽Js9，攻絲2處加工完畢。

下載PDF產品資料

客戶留言在線咨詢

產品介紹規格型號

特點

◎ 軸孔
軸孔徑根據電機，減速機軸的輸出軸徑等需求較多的尺寸設定，公差為H7。
◎ 鍵槽
按照J(rèn)IS B1301-1996新JIS規格的平行鍵級別 (Js9) 的齒底標準加工。
需要精密定位的場合請咨詢本公司。
◎ 帶鎖止螺釘
全品種2處攻絲加工，帶鎖止螺釘。 (內六角，開槽頭鋼鐵材質)
(鍵槽上部約90°側面，以及完成孔超過φ40mm時120°側面)
◎ 便利
加工內容均使用記號表示。按照型號即可正確下單訂貨。
◎ 簡便
訂貨時客戶無須制作圖紙。
◎ 迅速
交貨期短。

型號表示

（1）鏈條型號

（2）鏈條列數和輪轂形狀

（3）齒數

（4）齒尖硬化規格

（5）軸孔公差: H = H7

（6）軸孔經 15mm

（7）鍵槽公差: J = Js9

訂購鏈輪時的注意事項

當滾子鏈條和鏈輪型號都不明確時

◎ 必須確認滾子鏈條的規格（強力型、材質等規格）。并向裝置的制造商確認。

◎ 滾子鏈條的鏈板上刻有滾子鏈條的尺寸、規格可供確認。

◎ 請測量滾子鏈條的節距、滾子直徑、內鏈節內寬、鏈板厚度。

◎ 電話或者郵件聯系我們的技術人員現場測量確認鏈條、鏈輪的規格。

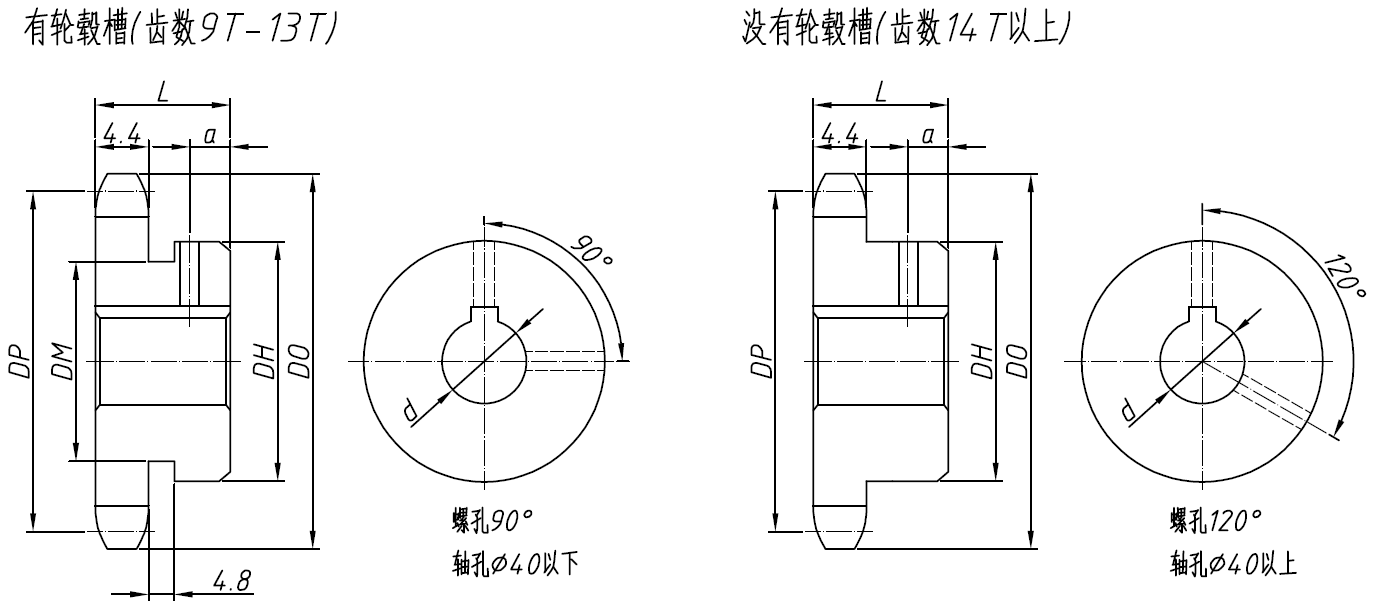

LDSC06A-1B-H

基本型號	齒數	適用軸孔徑	節距圓直徑 DP	外徑 DO	輪轂外徑 DH	輪轂長度 L	a	輪轂槽外徑 DM


		mm	mm	mm	mm	mm	mm	mm
LDSC06A-1B9TQ-H□□J	9	10	27.85	32	22	20	5	16
LDSC06A-1B10TQ-H□□J	10	10,12	30.82	35	25	20	5	18
LDSC06A-1B11TQ-H□□J	11	10,12,14	33.81	38	27	20	5	22
LDSC06A-1B12TQ-H□□J	12	10,12,14,15,16	36.80	41	31	20	5	24
LDSC06A-1B13TQ-H□□J	13	10,12,14,15,16,17,18	39.80	44	32	20	5	28
LDSC06A-1B14TQ-H□□J	14	10,12,14,15,16	42.81	47	30	20	8	---
LDSC06A-1B15TQ-H□□J	15	10,12,14,15,16,17,18,19	45.81	51	35	20	8	---
LDSC06A-1B16TQ-H□□J	16	10,12,14,15,16,17,18,19,20	48.82	54	37	20	8	---
LDSC06A-1B17TQ-H□□J	17	12,14,15,16,17,18,19,20,22,24	51.84	57	41	20	8	---
LDSC06A-1B18TQ-H□□J	18	12,14,15,16,17,18,19,20,22,24	54.85	60	44	20	8	---
LDSC06A-1B19TQ-H□□J	19	12,14,15,16,17,18,19,20,22,24, 25,28	57.87	63	47	20	8	---

LDSC06A-1B20TQ-H□□J	20	12,14,15,16,17,18,19,20,22,24, 25,28,30	60.89	66	50	20	8	---

LDSC06A-1B21TQ-H□□J	21	12,14,15,16,17,18,19,20,22,24, 25,28,30,32	63.91	69	53	20	8	---

LDSC06A-1B22TQ-H□□J	22	12,14,15,16,17,18,19,20,22,24, 25,28,30,32	66.93	72	53	20	8	---

LDSC06A-1B23TQ-H□□J	23	12,14,15,16,17,18,19,20,22,24, 25,28,30,32	69.95	75	53	20	8	---

LDSC06A-1B24TQ-H□□J	24	12,14,15,16,17,18,19,20,22,24, 25,28,30,32	72.97	78	53	22	10/7*	---

LDSC06A-1B25TQ-H□□J	25	15,16,17,18,19,20,22,24,25,28, 30,32	76.00	81	53	22	10/7*	---

LDSC06A-1B26TQ-H□□J	26	15,16,17,18,19,20,22,24,25,28, 30,32	79.02	84	53	22	10/7*	---

LDSC06A-1B27TQ-H□□J	27	15,16,17,18,19,20,22,24,25,28, 30,32	82.05	87	53	22	10/7*	---

LDSC06A-1B28TQ-H□□J	28	15,16,17,18,19,20,22,24,25,28, 30,32	85.07	90	53	22	10/7*	---

LDSC06A-1B30TQ-H□□J	30	15,16,17,18,19,20,22,24,25,28, 30,32	91.12	96	53	22	10/7*	---

LDSC06A-1B32TQ-H□□J	32	15,16,17,18,19,20,22,24,25,28, 30,32	97.18	102	53	22	10/7*	---

LDSC06A-1B34TQ-H□□J	34	15,16,17,18,19,20,22,24,25,28, 30,32	103.23	109	53	22	10/7*	---

LDSC06A-1B35TQ-H□□J	35	15,16,17,18,19,20,22,24,25,28, 30,32	106.26	112	53	22	10/7*	---

LDSC06A-1B36TQ-H□□J	36	15,16,17,18,19,20,22,24,25,28, 30,32	109.29	115	53	22	10/7*	---

LDSC06A-1B38TQ-H□□J	38	20,22,24,25,28,30,32,35,38	115.34	121	63	25	10	---
LDSC06A-1B40TQ-H□□J	40	20,22,24,25,28,30,32,35,38	121.40	127	63	25	10	---

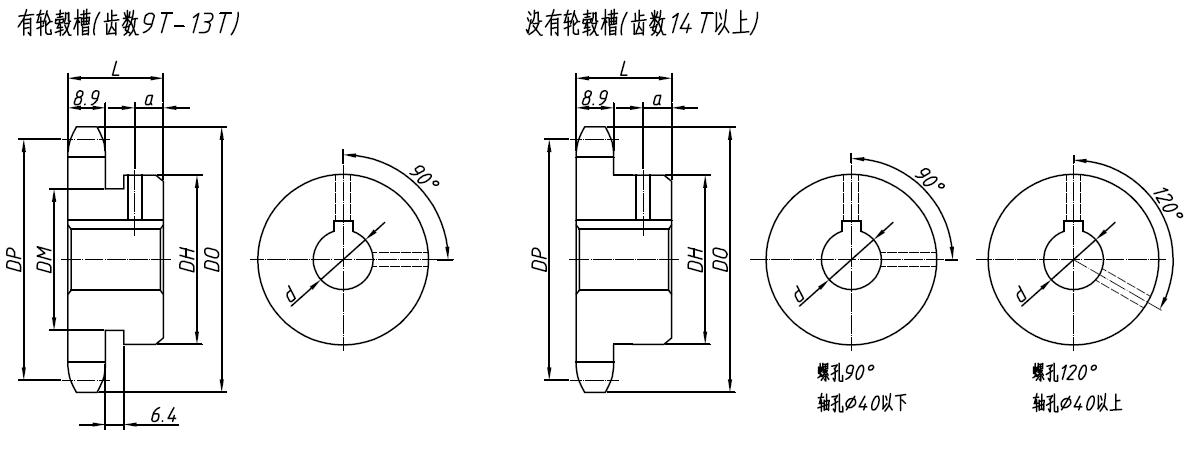

LDSC08A-1B-H

基本型號	齒數	適用軸孔徑	節距圓直徑 DP	外徑 DO	輪轂外徑 DH	輪轂長度 L	a	輪轂槽外徑 DM


		mm	mm	mm	mm	mm	mm	mm
LDSC08A-1B9TQ-H□□J	9	10,12,14,15	37.13	43	28	22	5	21
LDSC08A-1B10TQ-H□□J	10	10,12,14,15,16	41.10	47	32	22	5	25
LDSC08A-1B11TQ-H□□J	11	10,12,14,15,16,17,18,19,20	45.08	51	37	22	5	30
LDSC08A-1B12TQ-H□□J	12	10,12,14,15,16,17,18,19,20,22	49.07	55	40	22	5	32
LDSC08A-1B13TQ-H□□J	13	12,14,15,16,17,18,19,20	53.07	59	37	22	7	---
LDSC08A-1B14TQ-H□□J	14	12,14,15,16,17,18,19,20,22,24	57.07	63	42	22	7	---
LDSC08A-1B15TQ-H□□J	15	12,14,15,16,17,18,19,20,22,24, 25,28	61.08	67	46	22	7	---

LDSC08A-1B16TQ-H□□J	16	14,15,16,17,18,19,20,22,24,25, 28,30	65.10	71	50	22	7	---

LDSC08A-1B17TQ-H□□J	17	14,15,16,17,18,19,20,22,24,25, 28,30,32	69.12	76	54	22	7	---

LDSC08A-1B18TQ-H□□J	18	14,15,16,17,18,19,20,22,24,25, 28,30,32,35	73.14	80	57	22	7	---

LDSC08A-1B19TQ-H□□J	19	14,15,16,17,18,19,20,22,24,25, 28,30,32,35,38	77.16	84	62	22	7	---

LDSC08A-1B20TQ-H□□J	20	14,15,16,17,18,19,20,22,24,25, 28,30,32,35,38,40,42,45	81.18	88	67	25	7	---

LDSC08A-1B21TQ-H□□J	21	14,15,16,17,18,19,20,22,24,25, 28,30,32,35,38,40,42,45	85.21	92	71	25	7	---

LDSC08A-1B22TQ-H□□J	22	14,15,16,17,18,19,20,22,24,25, 28,30,32,35,38,40,42,45,48	89.24	96	75	25	7	---

LDSC08A-1B23TQ-H□□J	23	14,15,16,17,18,19,20,22,24,25, 28,30,32,35,38,40,42,45,48	93.27	100	77	25	7	---

LDSC08A-1B24TQ-H□□J	24	14,15,16,17,18,19,20,22,24,25, 28,30,32,35,38,40,42	97.30	104	63	25	7	---

LDSC08A-1B25TQ-H□□J	25	14,15,16,17,18,19,20,22,24,25, 28,30,32,35,38,40,42	101.33	108	63	25	7	---

LDSC08A-1B26TQ-H□□J	26	14,15,16,17,18,19,20,22,24,25, 28,30,32,35,38,40,42	105.36	112	63	25	7	---

LDSC08A-1B27TQ-H□□J	27	14,15,16,17,18,19,20,22,24,25, 28,30,32,35,38,40,42	109.40	116	63	25	7	---

LDSC08A-1B28TQ-H□□J	28	14,15,16,17,18,19,20,22,24,25, 28,30,32,35,38,40,42	113.43	120	63	25	7	---

LDSC08A-1B30TQ-H□□J	30	14,15,16,17,18,19,20,22,24,25, 28,30,32,35,38,40,42	121.50	128	63	25	7	---

LDSC08A-1B32TQ-H□□J	32	20,22,24,25,28,30,32,35,40	129.57	137	68	28	8	---
LDSC08A-1B34TQ-H□□J	34	20,22,24,25,28,30,32,35,40	137.64	145	68	28	8	---
LDSC08A-1B35TQ-H□□J	35	20,22,24,25,28,30,32,35,40	141.68	149	68	28	8	---
LDSC08A-1B36TQ-H□□J	36	20,22,24,25,28,30,32,35,40	145.72	153	68	28	8	---
LDSC08A-1B38TQ-H□□J	38	24,25,28,30,32,35,40	153.79	161	68	28	8	---
LDSC08A-1B40TQ-H□□J	40	25,28,30,32,35,40	161.87	169	68	28	8	---

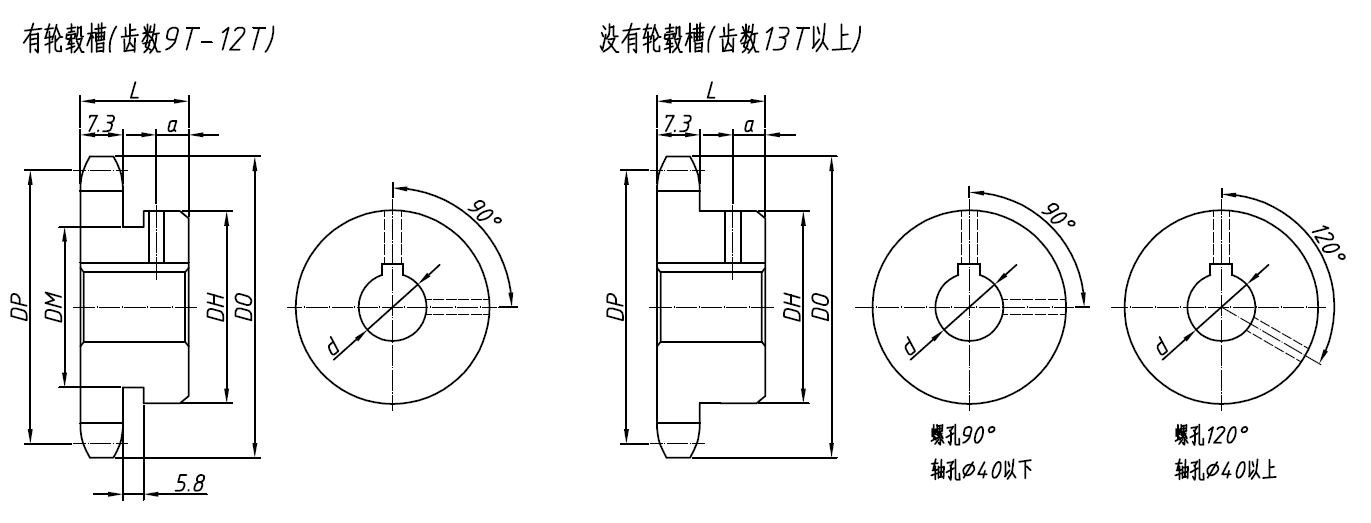

LDSC10A-1B-H

基本型號	齒數	適用軸孔徑	節距圓直徑 DP	外徑 DO	輪轂外徑 DH	輪轂長度 L	a	輪轂槽外徑 DM


		mm	mm	mm	mm	mm	mm	mm
LDSC10A-1B9TQ-H□□J	9	16,17,18,19	46.42	53	34	25	6	27
LDSC10A-1B10TQ-H□□J	10	15,16,17,18,19,20,22	51.37	58	40	25	6	32
LDSC10A-1B11TQ-H□□J	11	15,16,17,18,19,20,22,24,25	56.35	64	46	25	6	37
LDSC10A-1B12TQ-H□□J	12	15,16,17,18,19,20,22,24,25,28, 30,32	61.34	69	51	25	6	42

LDSC10A-1B13TQ-H□□J	13	14,15,16,17,18,19,20,22,24,25, 28,30,32	66.33	74	51	25	6	47

LDSC10A-1B14TQ-H□□J	14	14,15,16,17,18,19,20,22,24,25, 28,30,32	71.34	79	52	25	7	---

LDSC10A-1B15TQ-H□□J	15	14,15,16,17,18,19,20,22,24,25,	76.35	84	57	25	7	---
		28,30,32,35
LDSC10A-1B16TQ-H□□J	16	14,15,16,17,18,19,20,22,24,25, 28,30,32,35,38,40	81.37	89	62	25	7	---

LDSC10A-1B17TQ-H□□J	17	14,15,16,17,18,19,20,22,24,25, 28,30,32,35,38,40,42,45	86.39	94	67	25	7	---

LDSC10A-1B18TQ-H□□J	18	14,15,16,17,18,19,20,22,24,25, 28,30,32,35,38,40,42,45	91.42	100	72	28	8	---

LDSC10A-1B19TQ-H□□J	19	14,15,16,17,18,19,20,22,24,25, 28,30,32,35,38,40,42,45	96.45	105	73	28	8	---

LDSC10A-1B20TQ-H□□J	20	14,15,16,17,18,19,20,22,24,25, 28,30,32,35,38,40,42,45	101.48	110	73	28	8	---

LDSC10A-1B21TQ-H□□J	21	17,18,19,20,22,24,25,28,30,32, 35,38,40,42,45	106.51	115	73	28	8	---

LDSC10A-1B22TQ-H□□J	22	17,18,19,20,22,24,25,28,30,32, 35,38,40,42,45	111.55	120	73	28	8	---

LDSC10A-1B23TQ-H□□J	23	17,18,19,20,22,24,25,28,30,32, 35,38,40,42,45	116.59	125	73	28	8	---

LDSC10A-1B24TQ-H□□J	24	17,18,19,20,22,24,25,28,30,32, 35,38,40,42,45	121.62	130	73	28	8	---

LDSC10A-1B25TQ-H□□J	25	17,18,19,20,22,24,25,28,30,32, 35,38,40,42,45	126.66	135	73	28	8	---

LDSC10A-1B26TQ-H□□J	26	25,28,30,32,35,38,40,45	131.70	140	73	28	8	---
LDSC10A-1B27TQ-H□□J	27	25,28,30,32,35,38,40,45	136.74	145	73	28	8	---
LDSC10A-1B28TQ-H□□J	28	25,28,30,32,35,38,40,42,45	141.79	150	73	28	8	---
LDSC10A-1B30TQ-H□□J	30	25,28,30,32,35,38,40,45	151.87	161	73	28	8	---
LDSC10A-1B32TQ-H□□J	32	25,28,30,32,35,38,40,45	161.96	171	73	28	8	---
LDSC10A-1B34TQ-H□□J	34	25,28,30,32,35,38,40,45	172.05	181	73	28	8	---
LDSC10A-1B35TQ-H□□J	35	25,28,30,32,35,38,40,45	177.10	186	73	28	8	---

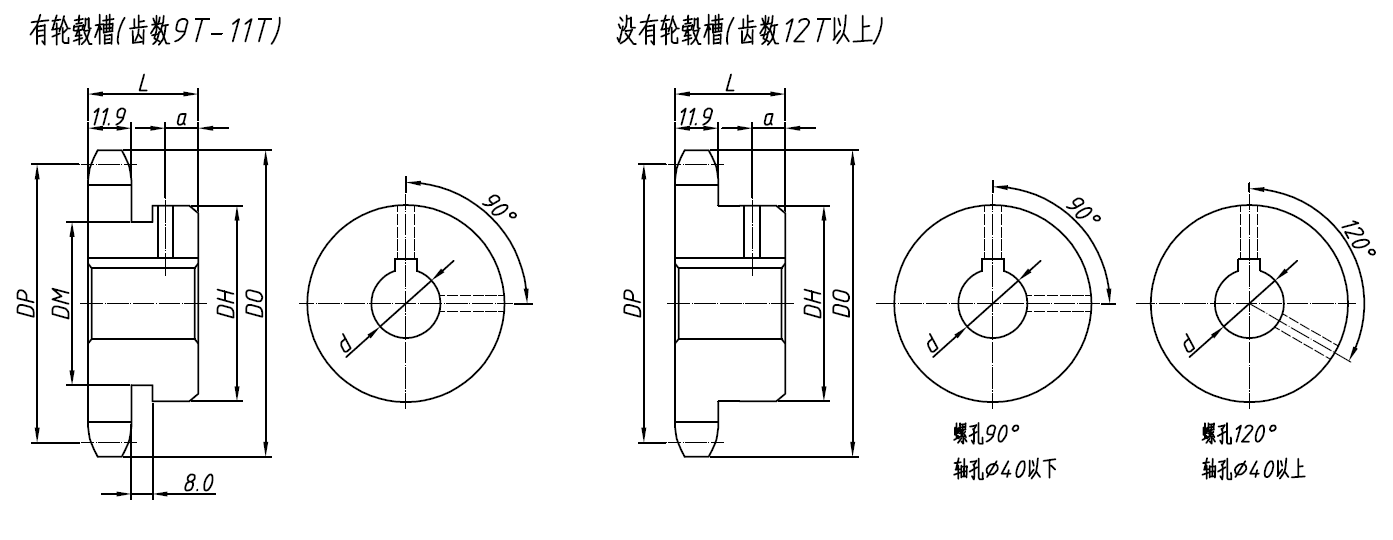

LDSC12A-1B-H

基本型號	齒數	適用軸孔徑	節距圓直徑 DP	外徑 DO	輪轂外徑 DH	輪轂長度 L	a	輪轂槽外徑 DM


		mm	mm	mm	mm	mm	mm	mm
LDSC12A-1B 9TQ-H□□J	9	19,20,22,24	55.70	64	43	32	6	32
LDSC12A-1B10TQ-H□□J	10	19,20,22,24,25,28,30	61.65	70	49	32	6	37
LDSC12A-1B11TQ-H□□J	11	19,20,22,24,25,28,30,32	67.62	76	51	32	6	45
LDSC12A-1B12TQ-H□□J	12	19,20,22,24,25,28,30,32	73.60	83	51	32	12	---
LDSC12A-1B13TQ-H□□J	13	19,20,22,24,25,28,30,32,35	79.60	89	57	32	12	---
LDSC12A-1B14TQ-H□□J	14	19,20,22,24,25,28,30,32,35,38	85.61	95	62	32	12	---
LDSC12A-1B15TQ-H□□J	15	19,20,22,24,25,28,30,32,35,38, 40,42,45	91.63	101	68	32	12	---

LDSC12A-1B16TQ-H□□J	16	19,20,22,24,25,28,30,32,35,38, 40,42,45	97.65	107	73	32	12	---

LDSC12A-1B17TQ-H□□J	17	19,20,22,24,25,28,30,32,35,38, 40,42,45	103.67	113	73	32	12	---

LDSC12A-1B18TQ-H□□J	18	19,20,22,24,25,28,30,32,35,38, 40,42,45,48,50,55	109.70	119	83	40	12	---

LDSC12A-1B19TQ-H□□J	19	19,20,22,24,25,28,30,32,35,38, 40,42,45,48,50,55	115.74	126	83	40	12	---

LDSC12A-1B20TQ-H□□J	20	19,20,22,24,25,28,30,32,35,38, 40,42,45,48,50,55	121.78	132	83	40	12	---

LDSC12A-1B21TQ-H□□J	21	20,22,24,25,28,30,32,35,38,40, 42,45,48,50,55	127.82	138	83	40	12	---

LDSC12A-1B22TQ-H□□J	22	20,22,24,25,28,30,32,35,38,40, 42,45,48,50,55	133.86	144	83	40	12	---

LDSC12A-1B23TQ-H□□J	23	20,22,24,25,28,30,32,35,38,40, 42,45,48,50,55	139.90	150	83	40	12	---

LDSC12A-1B24TQ-H□□J	24	20,22,24,25,28,30,32,35,38,40, 42,45,48,50,55	145.95	156	83	40	12	---

LDSC12A-1B25TQ-H□□J	25	20,22,24,25,28,30,32,35,38,40, 42,45,48,50,55	151.99	162	83	40	12	---

LDSC12A-1B26TQ-H□□J	26	20,22,24,25,28,30,32,35,38,40, 42,45,48,50,55	158.04	168	83	40	12	---

LDSC12A-1B27TQ-H□□J	27	22,24,25,28,30,32,35,38,40,42, 45,48,50	164.09	174	83	40	12	---

LDSC12A-1B28TQ-H□□J	28	22,24,25,28,30,32,35,38,40,42, 45,48,50	170.14	180	83	40	12	---

LDSC12A-1B30TQ-H□□J	30	22,24,25,28,30,32,35,38,40,42, 45,48,50	182.25	193	83	40	12	---

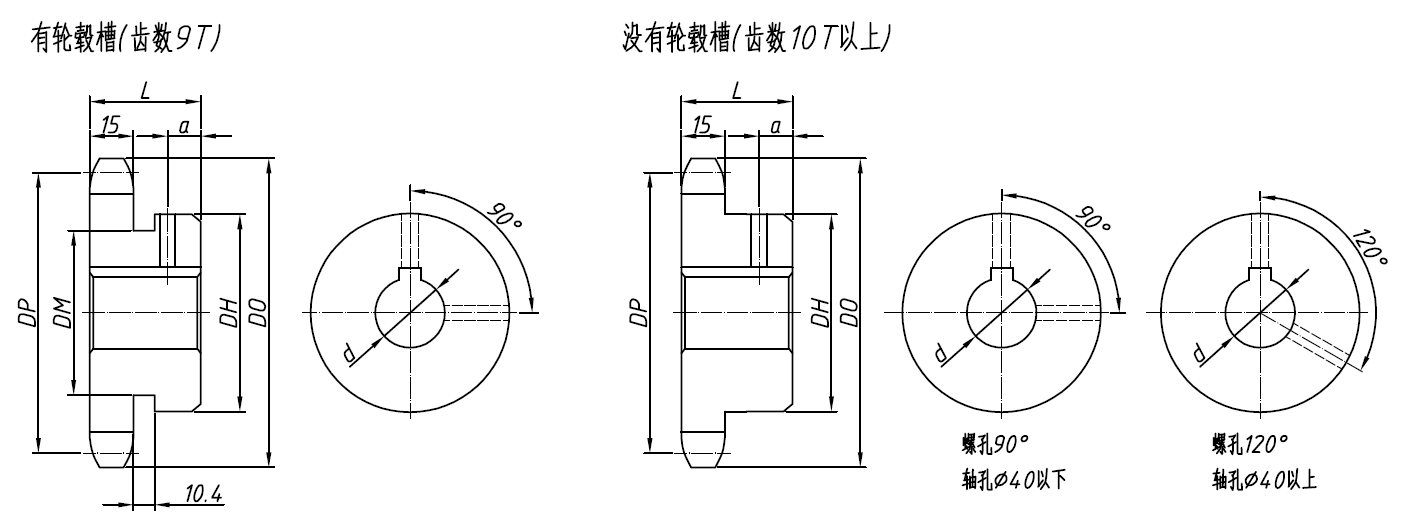

LDSC16A-1B-H

基本型號	齒數	適用軸孔徑	節距圓直徑 DP	外徑 DO	輪轂外徑 DH	輪轂長度 L	a	輪轂槽外徑 DM


		mm	mm	mm	mm	mm	mm	mm
LDSC16A-1B 9TQ-H□□J	9	25,28,30,32,35	74.26	85	58	40	8	44
LDSC16A-1B10TQ-H□□J	10	25,28,30,32	82.20	93	52	40	12	---
LDSC16A-1B11TQ-H□□J	11	25,28,30,32,35,38	90.16	102	60	40	12	---
LDSC16A-1B12TQ-H□□J	12	25,28,30,32,35,38,40,42,45	98.14	110	67	40	12	---
LDSC16A-1B13TQ-H□□J	13	25,28,30,32,35,38,40,42,45,48, 50	106.14	118	77	40	12	---

LDSC16A-1B14TQ-H□□J	14	25,28,30,32,35,38,40,42,45,48, 50	114.15	127	77	40	12	---

LDSC16A-1B15TQ-H□□J	15	25,28,30,32,35,38,40,42,45,48, 50,55,60	122.17	135	93	40	12	---

LDSC16A-1B16ATQ-H□□J	16	24,25,28,30,32,35,38,40,42,45, 48,50,55,60	130.20	143	93	40	12	---

LDSC16A-1B17TQ-H□□J	17	25,28,30,32,35,38,40,42,45,48, 50,55,60	138.23	151	93	40	12	---

LDSC16A-1B18TQ-H□□J	18	25,28,30,32,35,38,40,42,45,48, 50,55,60	146.27	159	93	40	12	---

LDSC16A-1B19TQ-H□□J	19	25,28,30,32,35,38,40,42,45,48, 50,55,60	154.32	167	93	40	12	---

LDSC16A-1B20TQ-H□□J	20	25,28,30,32,35,38,40,42,45,48, 50,55,60	162.37	176	93	40	12	---

LDSC16A-1B21TQ-H□□J	21	25,28,30,32,35,38,40,42,45,48, 50,55,60	170.42	184	93	40	12	---

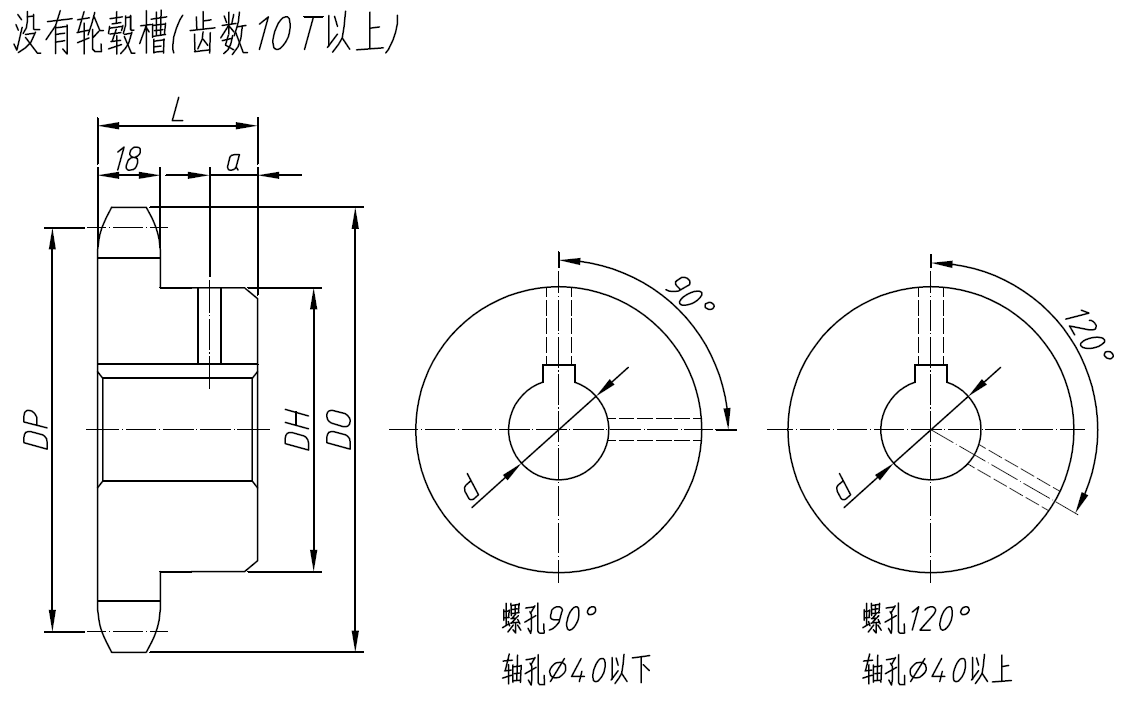

LDSC20A-1B-H

基本型號	齒數	適用軸孔徑	節距圓直徑 DP	外徑 DO	輪轂外徑 DH	輪轂長度 L	a


		mm	mm	mm	mm	mm	mm
LDSC20A-1B10TQ-H□□J	10	25,28,30,32,35,38,40,42	102.75	117	65	50	15
LDSC20A-1B11TQ-H□□J	11	25,28,30,32,35,38,40,42,45,48, 50	112.70	127	75	50	15

LDSC20A-1B12TQ-H□□J	12	25,28,30,32,35,38,40,42,45,48, 50,55	122.67	138	86	50	15

LDSC20A-1B13TQ-H□□J	13	25,28,30,32,35,38,40,42,45,48, 50,55	132.67	148	88	50	15

LDSC20A-1B14TQ-H□□J	14	25,28,30,32,35,38,40,42,45,48, 50,55	142.68	158	88	50	15

LDSC20A-1B15TQ-H□□J	15	32,35,38,40,42,45,48,50,55,60	152.71	168	98	50	15
LDSC20A-1B16TQ-H□□J	16	38,45,50,55,60	162.75	179	98	50	15
LDSC20A-1B17TQ-H□□J	17	38,45,50,60	172.79	189	107	50	15
LDSC20A-1B18TQ-H□□J	18	38,45,50,60	182.84	199	107	50	15
LDSC20A-1B19TQ-H□□J	19	38,45,50,60	192.90	209	107	50	15
LDSC20A-1B20TQ-H□□J	20	38,45,50,60	202.96	220	107	50	15
LDSC20A-1B21TQ-H□□J	21	45,50,60	213.03	230	107	50	15
